Zinc Bath Heater

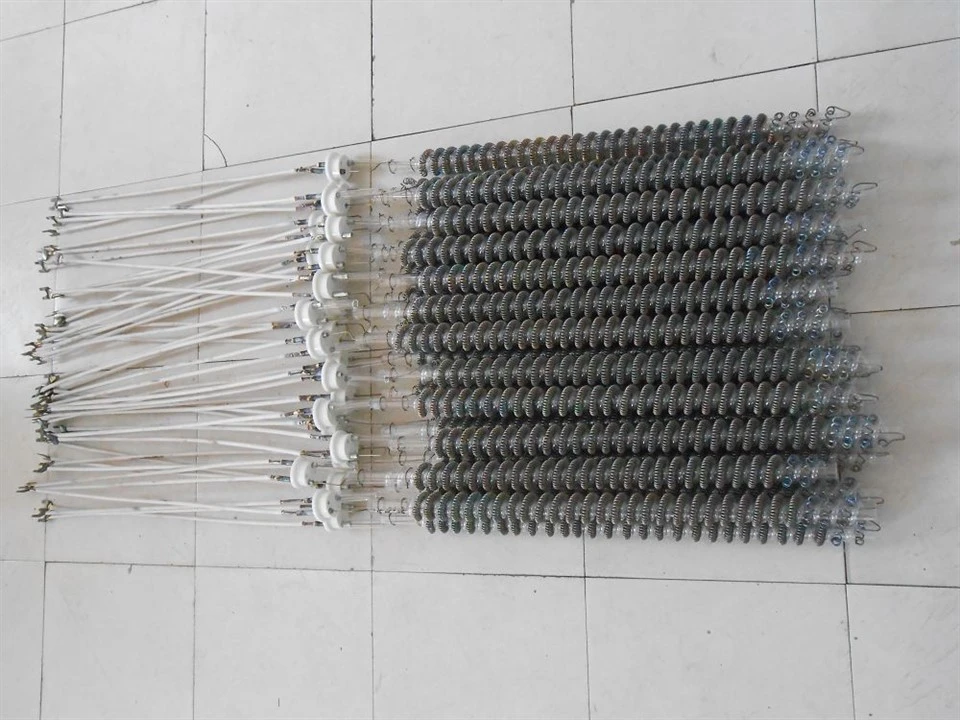

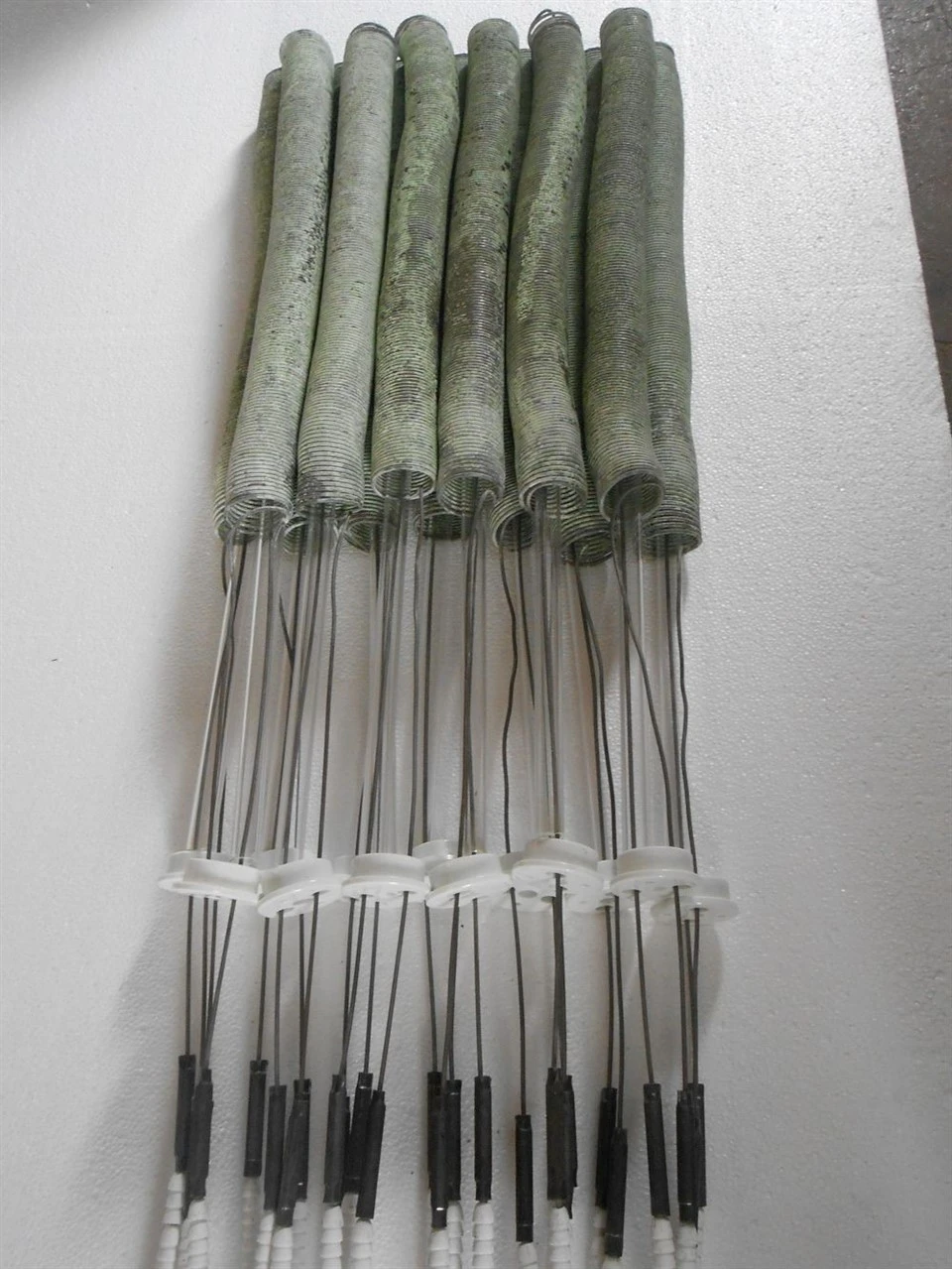

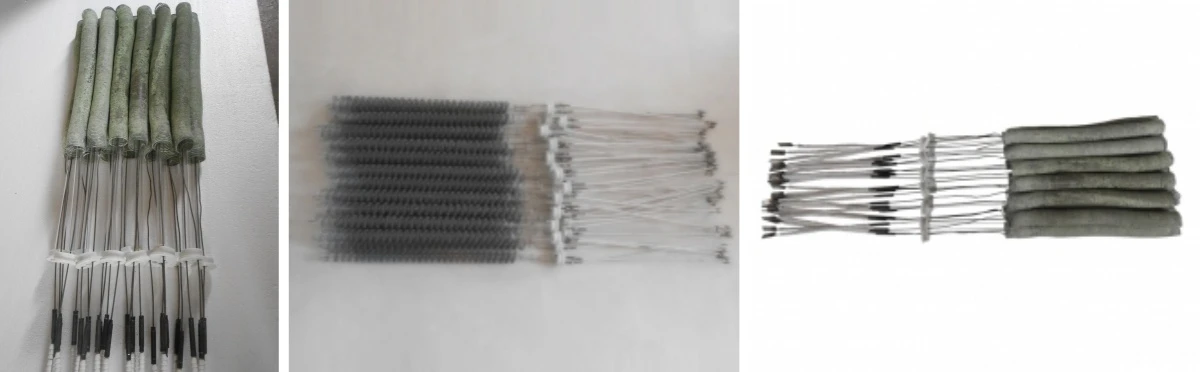

Name: Internally Heated Ceramic Zinc Pot Heating Element
Specification: Customized accessories according to actual user application parameters
Overview: Suitable for replacement of all heating element accessories on hot-dip galvanizing production lines. The heating elements are designed with high corrosion resistance and high power. Additionally, the surface load of the heating elements meets standard design requirements, ensuring long service life, reducing replacement frequency, and lowering production line operating costs. Heating elements can be customized according to specific user requirements.
Application Parameters
|
Heating Element Name |
Material |
Heating Wire Type |
Dimensions / Parameters |
Application Location |
|
SHY-2 Heating Element |
Quartz + HRE |
Spiral Wound |
Φ40~60mm × 700~1200mm; Voltage: 110V, 220V; Power: 4.5KW–12KW |
Molten Zinc Heating |
|
SHY-3 Heating Element |
Quartz + HRE |
Single Wire Wound |
Φ40~60mm × 700~1200mm; Voltage: 110V, 220V; Power: 4.5KW–8KW |
Molten Zinc Heating |
